Soft Connection
Product Features

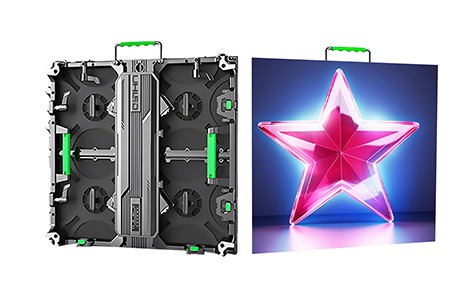

High-definition picture quality: high-quality LED lamp beads are used to present delicate pictures, vivid colors, and can be clearly seen even in strong light environments.

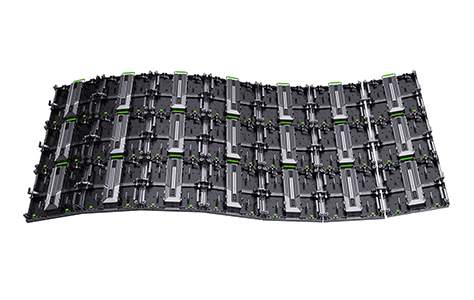

Curved splicing, flexible and changeable: soft connection design can achieve a variety of creative shapes such as arc, circle, and wave, meet the needs of different scenes, and create a more visually impactful display effect.

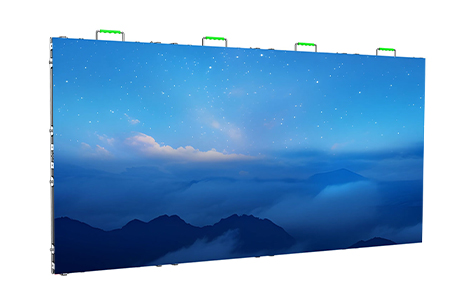

Seamless splicing, seamless: using advanced splicing technology to eliminate screen seams, achieve seamless connection of the picture, and present a complete and smooth visual experience.
Download Brochure
IP66 aluminum cabinet Brochure
21.96KB pdf
Specs
Title
| Technical Parameter | |||
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm |
| Module Size | 250mm×250mm | 250mm×250mm | 250mm×250mm |
| Application | Indoor & Outdoor | ||
| Cabinet Size | 500×500/500×1000mm | ||
| LED Configuration | SMD1415 | SMD1415 | SMD1921 |
| Cabinet Density | 147474dots /㎡ | 112910dots /㎡ | 65410dots /㎡ |
| Cabinet Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Cabinet Weight | 7.5kg/15kg | 7.5kg/15kg | 7.5kg/15kg |
| Gray Scale | 16bit | 16bit | 16bit |
| Color Depth | 65536 | 65536 | 65536 |
| Refresh Rate | ≥3840hz | ≥3840hz | ≥3840hz |
| Brightness | 800-4000cd/㎡ | 800-4000cd/㎡ | 800-4000cd/㎡ |
| Viewing Voltage | 140/120° | 140/120° | 140/120° |
| Storage Temperature | —15 ~ 50℃ | —15 ~ 50℃ | —15 ~ 50℃ |
| Working Temperature | —10 ~ 40℃ | —10 ~ 40℃ | —10 ~ 40℃ |
| Installation Type | Hanging /Stacking | Hanging /Stacking | Hanging /Stacking |
| Maintenance Type | Rear | Rear | Rear |
