LED Poster Display Installation Instructions

Installation instructions

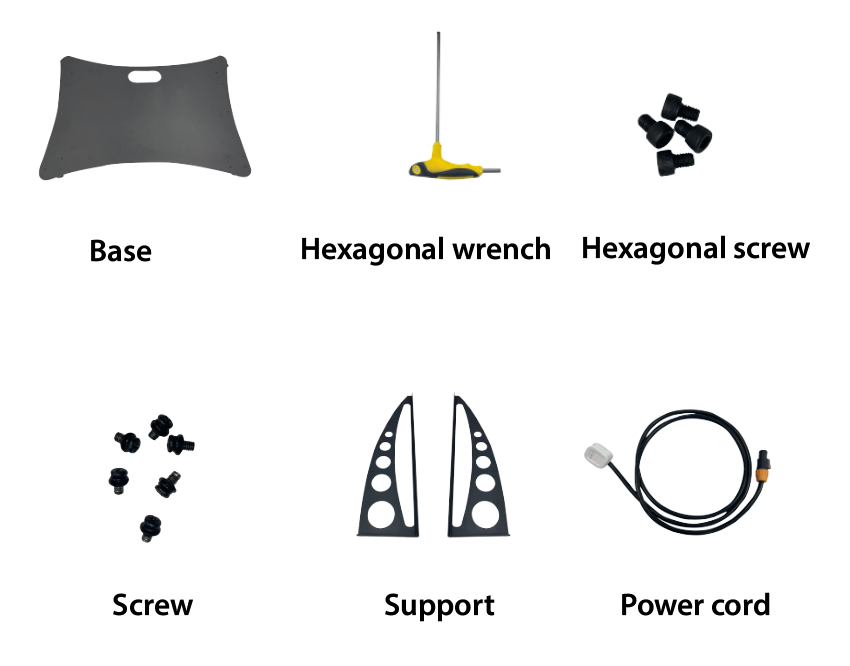

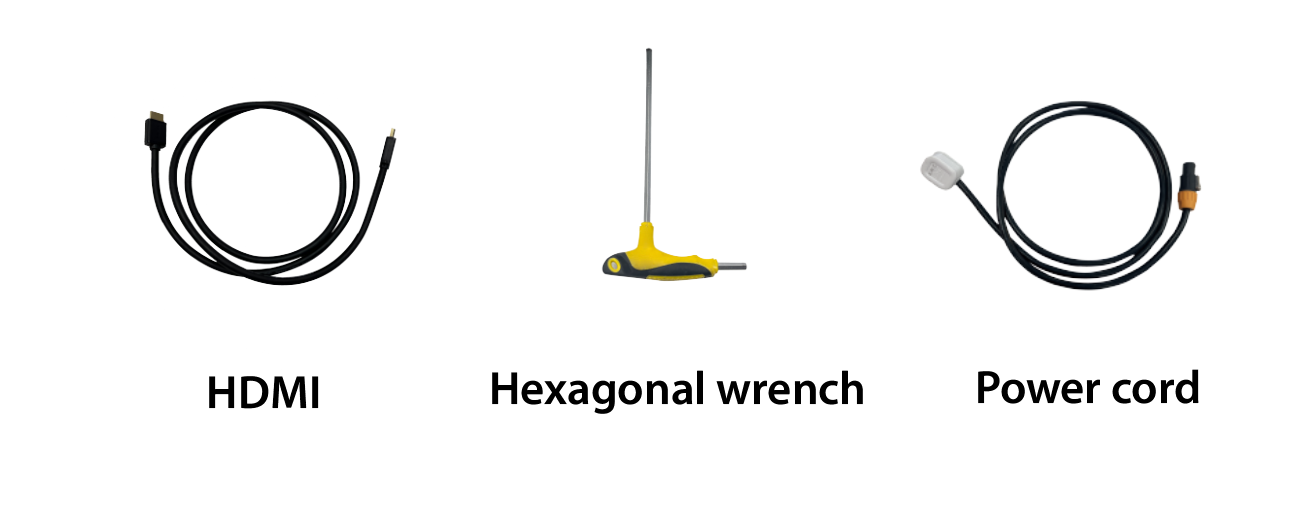

Product spare parts

Base assembly demonstration

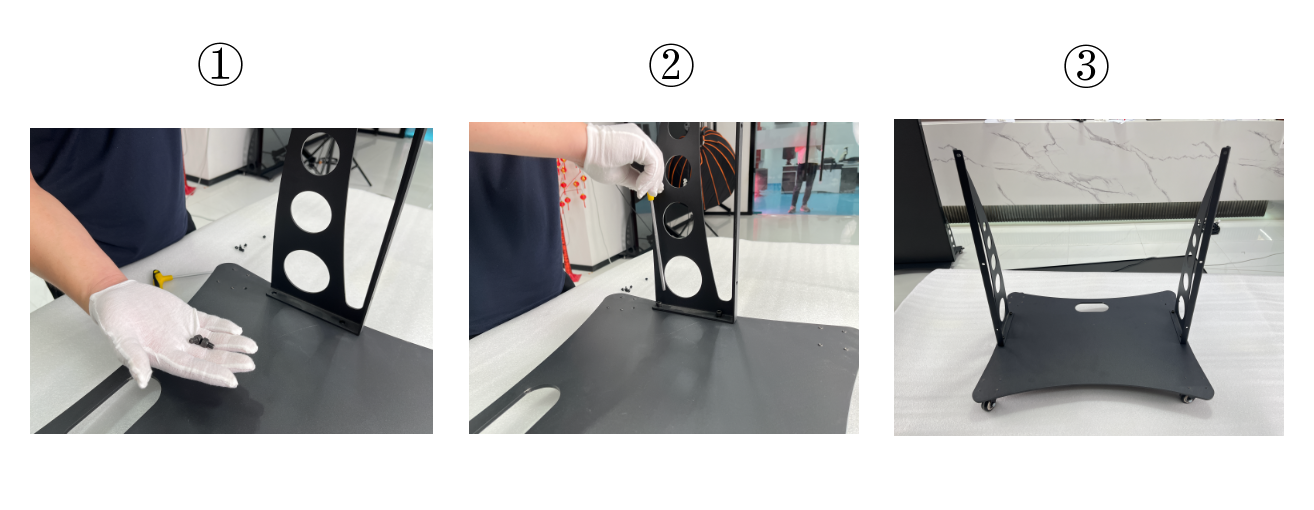

①Take two hexagon screws

②Use a hexagon wrench be fixed to the bracket in base

③Attach the bracket to the base using hexagon screws on both the left and right sides

The base and cabinet are assembled together

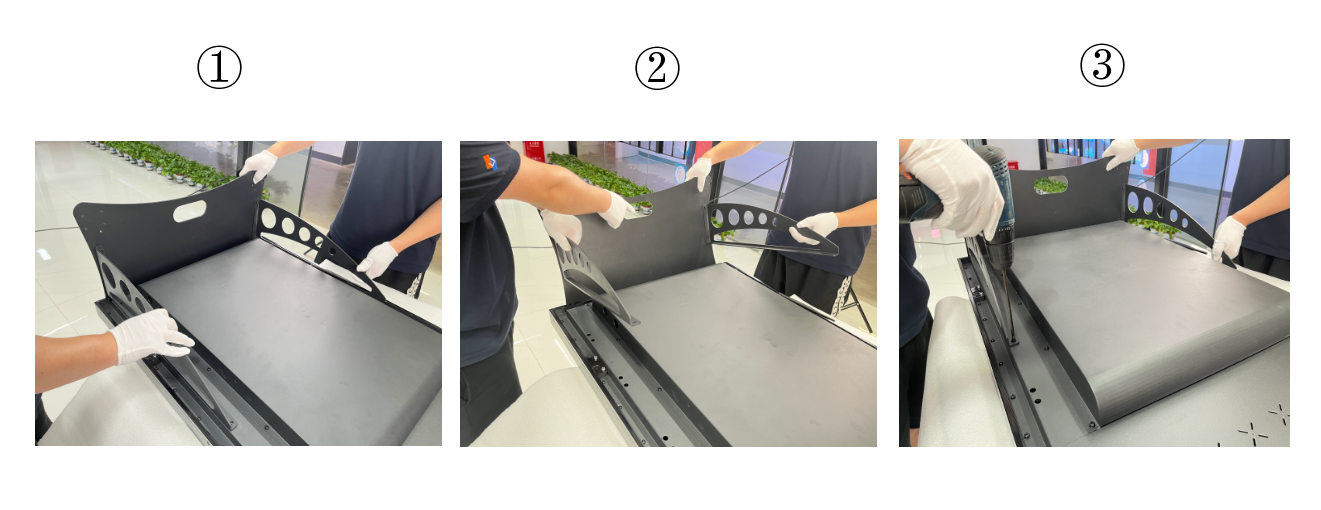

①Adjust the base to the correct position Locate and install in cabinet bottom

②The side with the hole at the bottom is the opposite side of the screen

③Fixed both sides with screws

Light up the screen

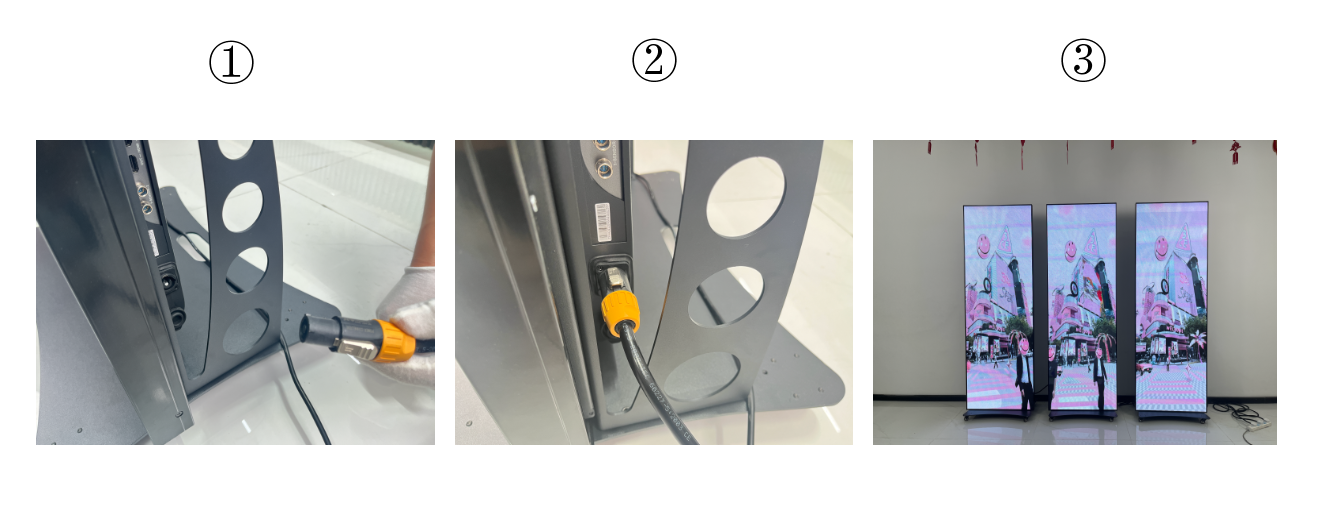

① Take the power cable out

②Plug the power cable into the power hole on the base

③Turn on the power and the screen lights up

Seamless splice mounting

Product assembly spare partsRemoving the cabinet baffle

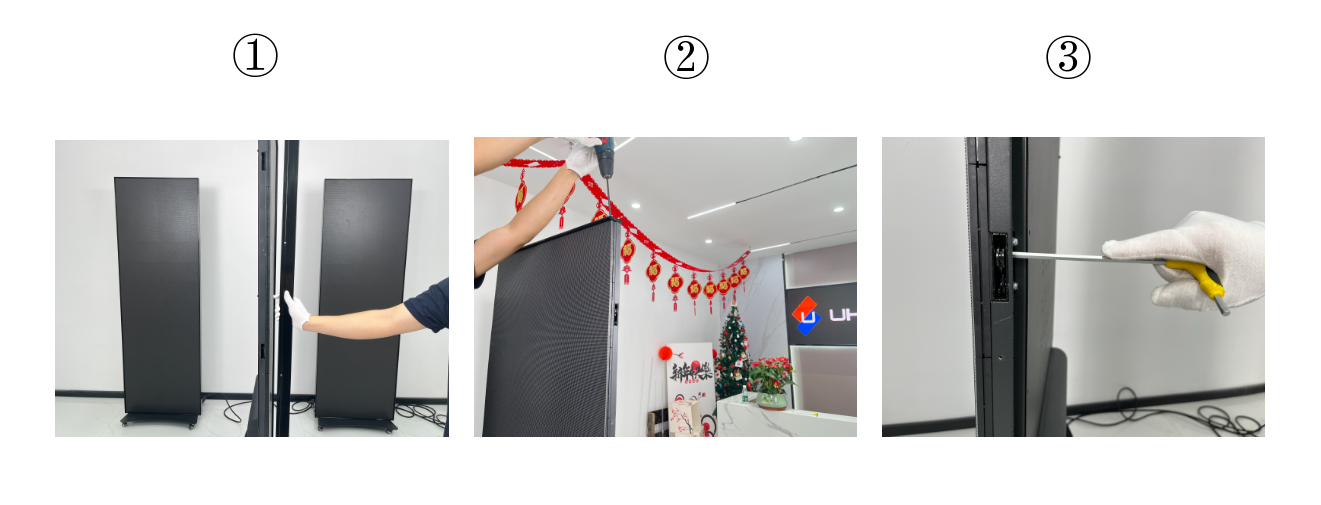

①Remove the side frame of the cabinet

②Remove the top frame of the cabinet

③Hexagonal keyholes are used to splice cabinet

The cabinet is spliced between cabinets

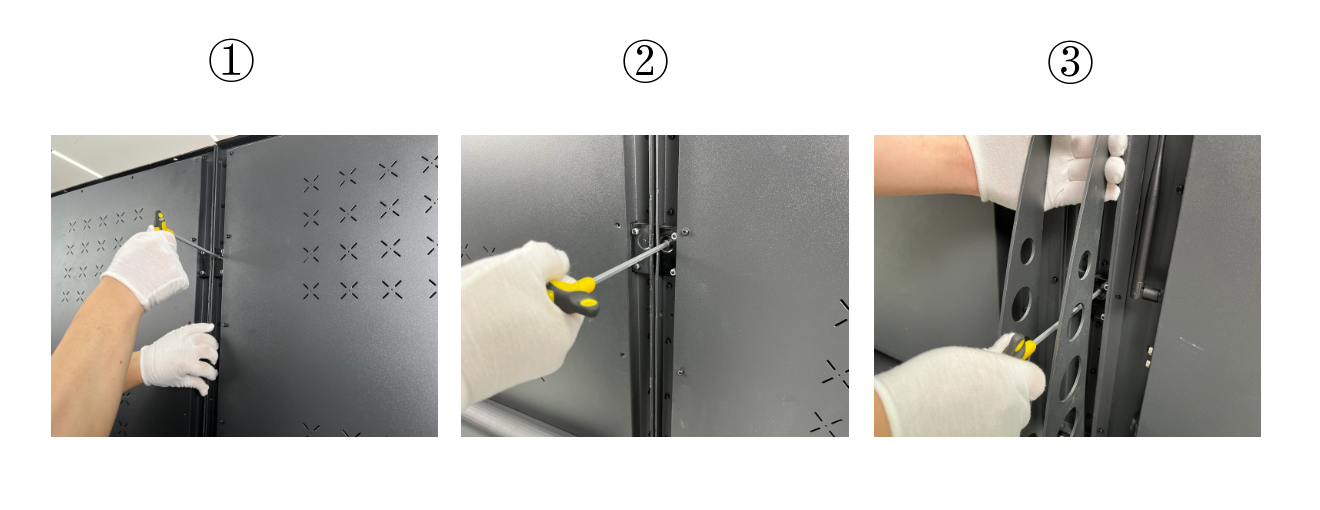

①Use a hexagon wrench fixed hexagonal keyholes which between cabinet

②Insert hexagon wrench into hexagon keyhole and turn clockwise to left

③There are three hexagon keyholes Both are rotated clockwise to the left using a hexagon wrench

Connect network cables between cabinets

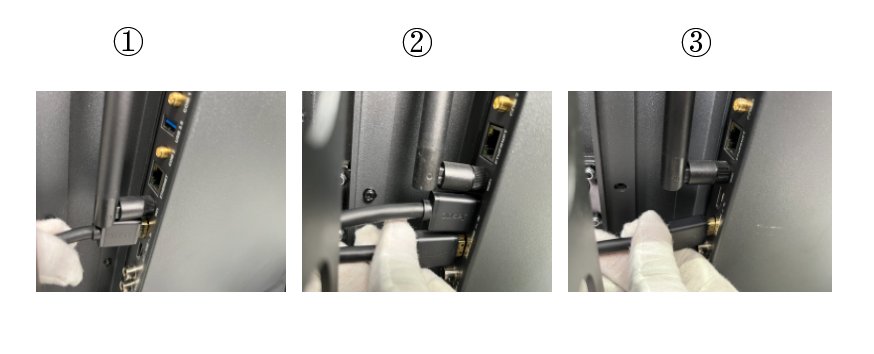

①Take the HDMI cable out

②The output of the first is connected to the input of the second

③ The output of the second is connected to the input of the third

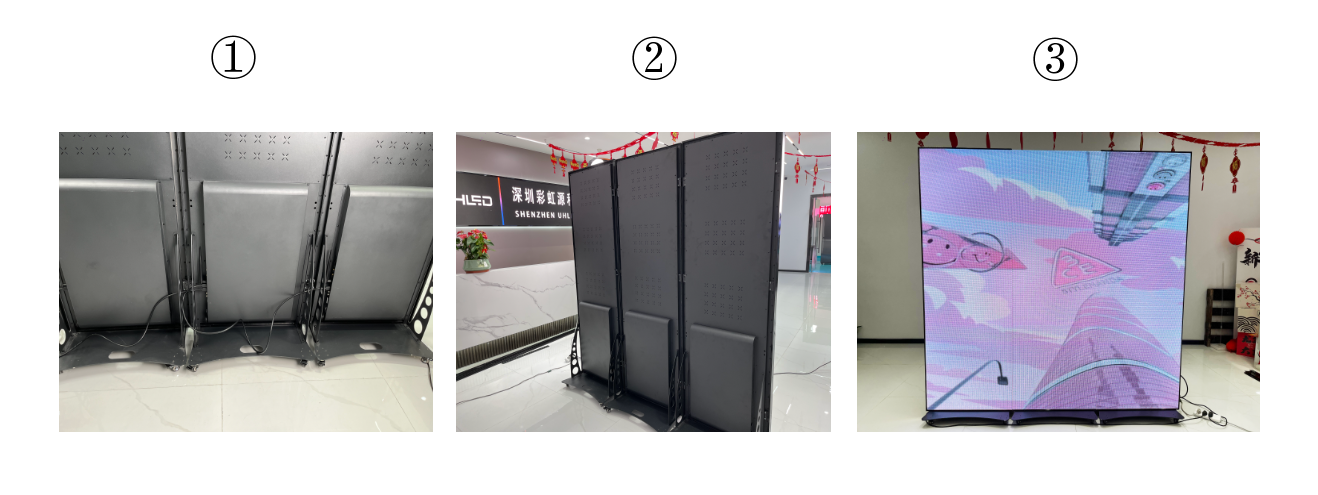

Light up the screen

①HDMI cable Connection successful

②Connect one power cable to each cabinet

③Turn on the power and the screen lights up
